Trigger Smart Flows from the Power Platform

This tutorial shows you how to configure a Power Automate flow that generates and stores documents using Experlogix Smart Flows, and how to trigger that flow from a Power Apps Canvas App. The purpose is to demonstrate how to automate document generation when a record is updated in Microsoft Dataverse and make it accessible through a custom app interface.

You’ll learn how to:

  • Trigger Smart Flows from Power Automate

  • Configure the Execute Flow action with connection details and required parameters

  • Retrieve and download generated documents

  • Store documents in SharePoint

  • Trigger the flow from a Power Apps Canvas App using the Run function and entity record ID

This scenario is designed for solution builders or system admins who need to integrate Experlogix document automation into Power Platform-based solutions. By the end of this tutorial, you will have a working integration that creates and stores documents automatically and can be triggered through a low-code app.

Using Power Automate

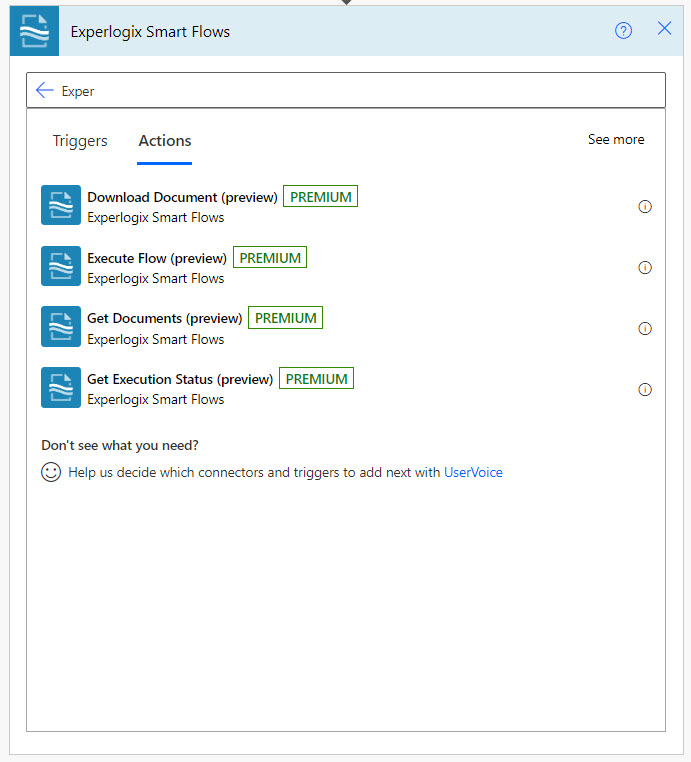

In Power Automate, the Experlogix Smart Flows currently gives access to several actions.

For more details on the Experlogix Smart Flows connector, refer to our Microsoft Connector Reference Docs.

Scenario

In the following example, we will go step by step to create an automated flow in Power Automate and call Smart Flows to generate and retrieve that generated document.

Business Context:

Your sales operations team wants to automatically generate a sales quote document every time a customer’s account is updated in your connector. You also want the document to be stored in SharePoint and allow sales reps to manually trigger this process through a mobile-friendly Canvas App.

You can use any Power Automate flow to call Smart Flows. We are only using the automated flow as an example.

Resources Needed

  • Access to Experlogix Smart Flows with a configured project and flow

  • Power Automate and Power Apps licenses with Dataverse and SharePoint connectors

  • API Key and project URL for Smart Flows

  • A Dataverse table with account data

  • SharePoint site for storing document

Create the flow

1. In Power Automate, create a new automated flow.

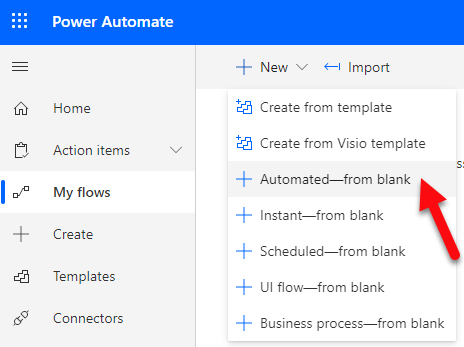

Automated flow creation screen with trigger selection in Power Automate

2. Give a name to your flow, search for the trigger Record updated, and select When a record is updated as the trigger.

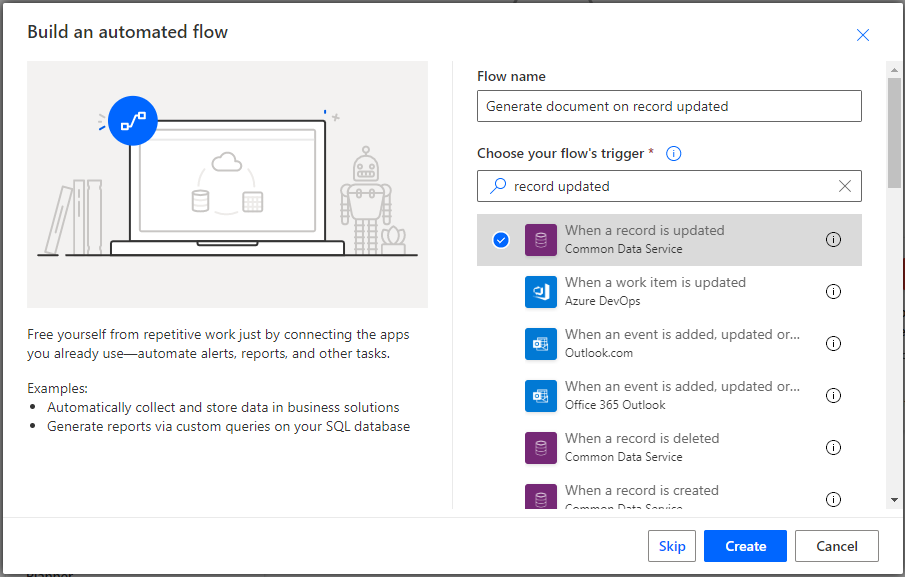

Trigger setup showing When a record is updated selected for Dataverse entity

3. Select the Create button.
4. Configure the trigger step. In this example, we want to generate a document when an account record is updated.

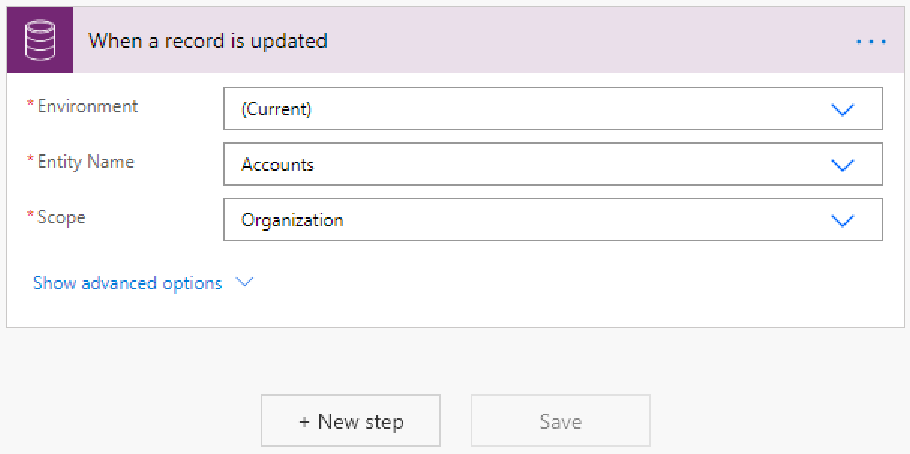

Dataverse entity configuration to detect account updates as flow trigger

5. Select on + New Step to add a new step.
6. Type Experlogix in the Search connectors and actions search box.
7. Select the Execute Flow action.

Power Automate step with Get Documents action using execution ID as input

If you are using the Experlogix connector for the first time, you'll be presented with the following step layout to configure the connection to Smart Flows. Please continue to Configure the connection to Experlogix Smart Flows

If you already have a connection to Smart Flows configured in Power Automate, skip to Configure the Execute Dynamics Flow step.

Configure the connection to Experlogix Smart Flows

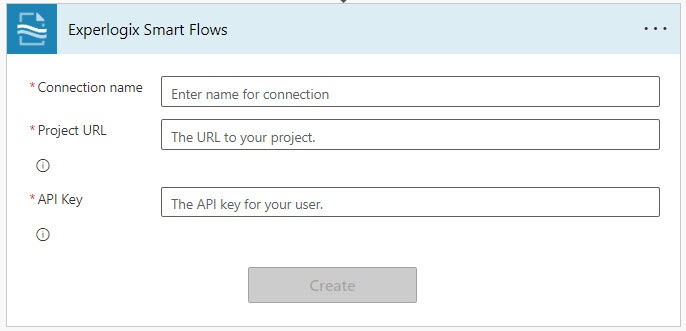

1. Fill in the information to create the Execute Flow action:
1.1. Connection Name: Name to identify the connection to Smart Flows in Microsoft Power Automate
1.2. Project URL: URL to the Smart Flows project. (Ex: https://MyProject.smartflows.xpertdoc.com)
1.3. API Key: API key used to authenticate the user in Smart Flows. For more info on how to get an API key, see Using the API.
2. Select on Create to continue.

The Execute Flow action displays.

Connection configuration fields for Smart Flows including name, project URL, and API key

Configure the Execute Dynamics Flow step

Now that the connection to Smart Flows is created, we can configure the Power Automate flow to actually call the execution of a document.

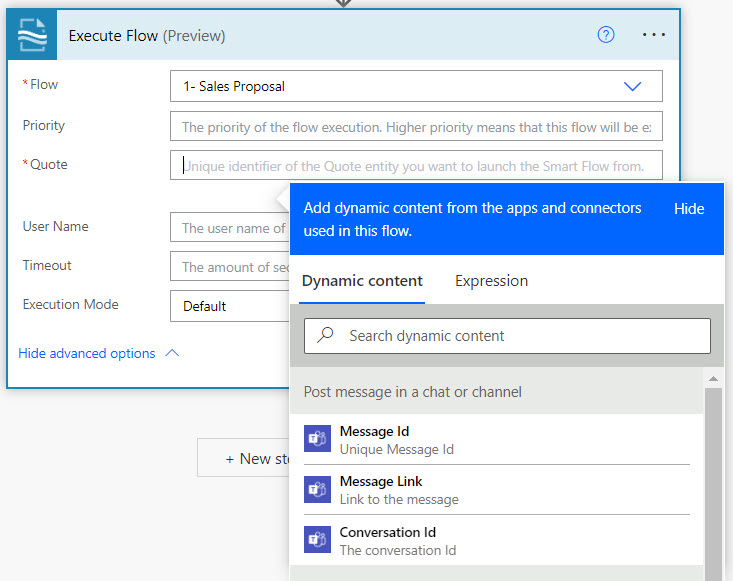

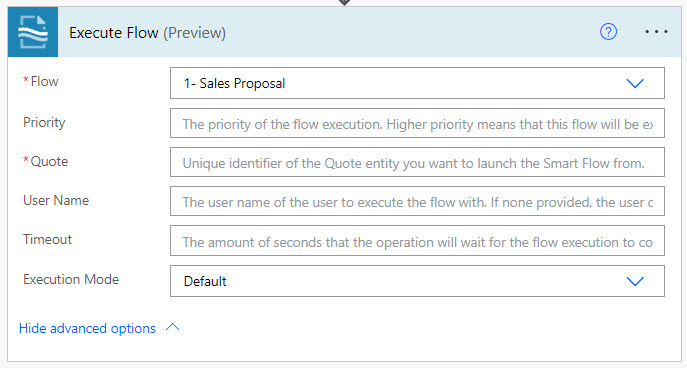

Execute Flow action in Power Automate with dynamic record and flow selection

The system automatically recognizes the entity used in the Experlogix Smart Flows. In our example, Quote is the entity we for the example flow in Smart Flows. However, if you have a different entity in use, you will see something different for your entity.

3. Configure the Flow Execute action.
3.1. Entity: Use dynamic content to select the updated record.
3.2. Flow: Select the flow to execute inSmart Flows.

Decision Point

If a user name is specified, the API key configured for the connection to Smart Flows must be for an administrator in Smart Flows.

There are two options involving the user name:

  1. Connection is configured with a connected user's API key (Dynamics user synchronized in Smart Flows), and no user name is provided in the Execute Flow action.
  2. Connection configured with the API key of a native user having the role 'Administrator' in Smart Flows and the user name of a connected user for the Execute Flow action.
3.3. User Name: Type the Experlogix Smart Flows username when running the flow or leave it empty to use the same username used in Power Automate.

Execute Flow action showing user name field and role options for administrator or synced user

4. Select the Save button to save your flow.

Now each time the system updates an account record in Dynamics, the system executes the selected Smart Flow.

Configure the Get Documents step

To complete our example, we now need to get the result of the execution. We need to add another step in the current Power Automate flow to do so.

1. Select on + New Step to add a new step.
2. Type Experlogix in the Search connectors and actions search box.
3. Select the Get Documents action.

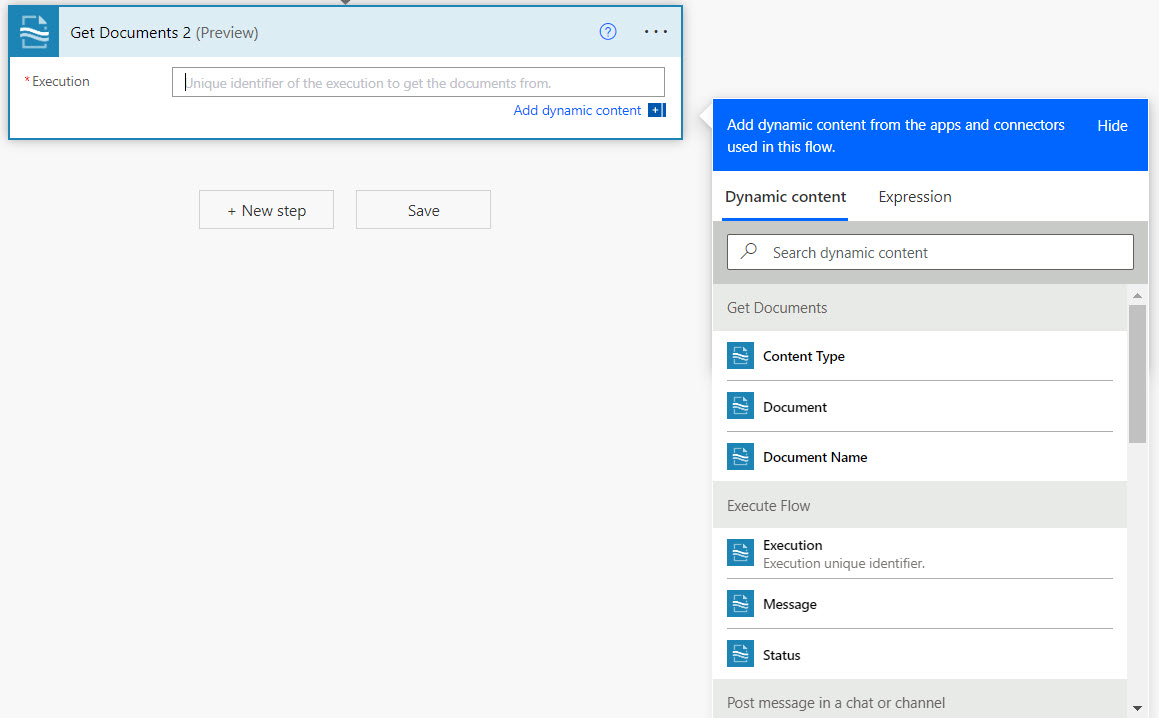

Power Automate step with Get Documents action using execution ID as input

4. Use dynamic content to assign the Execution.

Apply to each container created for handling multiple documents retrieved

5. Select Save to continue.

At this stage, the document(s) is(are) retrieved, but we are not doing anything with it.

Configure the Download Document

To finish this example, we’re storing the generated document(s) in Microsoft SharePoint.

1. Select on + New Step to add a new step.
2. Type Experlogix in the Search connectors and actions search box.
3. Select the Download Document action.

When you select Download Document, Power Automate switches to Apply to each, automatically applying an action on each retrieved document.

Power Automate step with Get Documents action using execution ID as input

4. Using dynamic content, select Document.

Dynamic content selection of Document field inside Apply to each loop

5. Select on + New Step to add a new step.
6. Search for SharePoint.
7. Select Create file.

We are storing the documents in the Shared Documents library of SharePoint. We used dynamic content to set the File Name using the Document Name from Smart Flows and the Document Content for the file content.

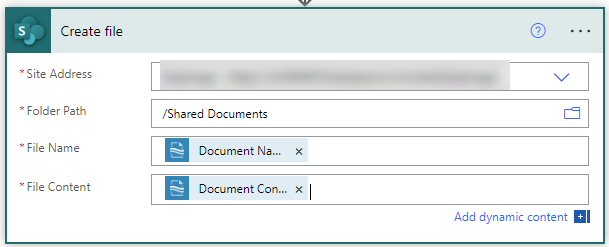

Create file action in SharePoint with file name and file content mapped from Smart Flows output

8. Select the Save button to save your flow.

Congratulations, you’ve completed the flow creation in Microsoft Power Automate.

Using Power Apps

For instance, you want your users to generate a document from a Canvas App. The easiest way to do this is to add a button and call a Power Automate flow. You only need to provide the record id to reference your flow.

In this example, a Canvas App was created using Common Data Service as the data source with the Account entity. By default, the app uses a browsing gallery to show the accounts' list. What we did was add a new icon at the top.

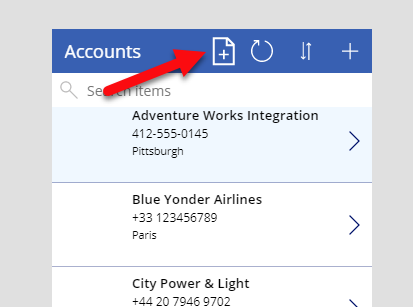

Canvas App editor with icon in header bar linked to flow for document generation

On that icon, an action of type Power Automate has been configured to call a flow. The flow looks like this:

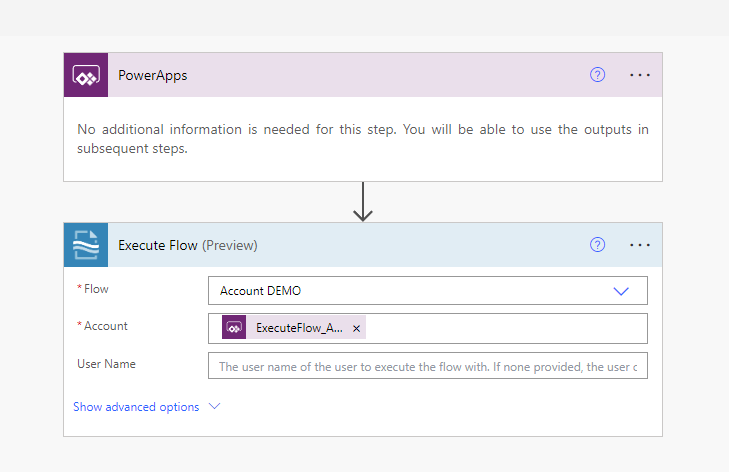

Canvas App with icon configured to trigger a Power Automate flow

The Execute Flow action expects the entity (GUID), and the value must come from the PowerApps step. You can use dynamic content to configure the parameter.

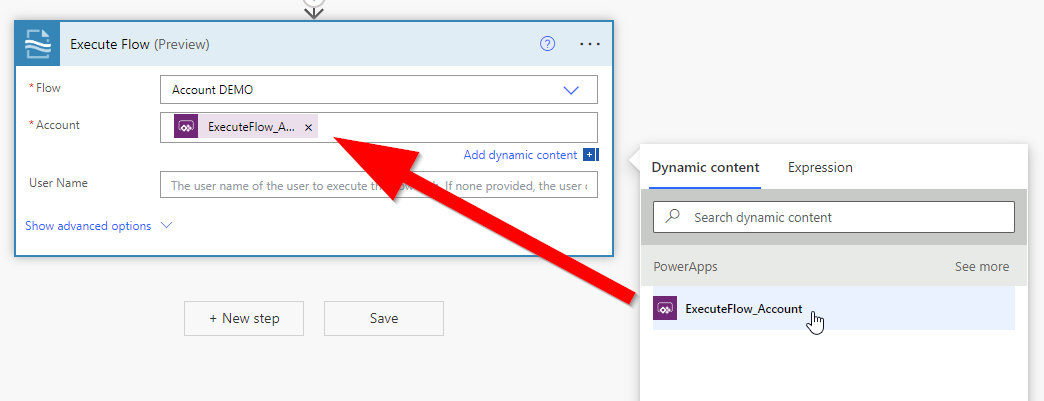

Execute Flow step in Power Automate receiving GUID from PowerApps input

Back in PowerApps, we must configure the action to call the flow we just configured. To do so, we used the following syntax:

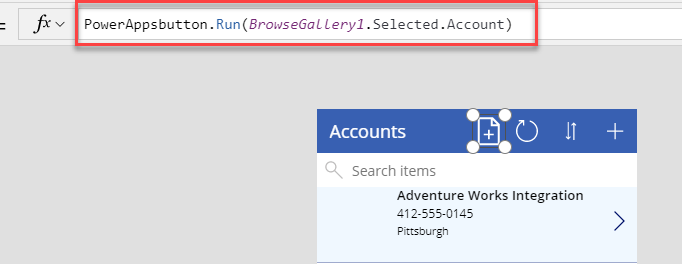

PowerApps formula bar showing Run function call with selected account ID

PowerAppsButton is the name of the flow we created in Power Automate. We call the Run function on the flow and provide the selected account.

We are now able to generate a document from a Canvas App. Now, it's up to you and your imagination to develop ideas on how to use Experlogix Smart Flows from Power Apps.
