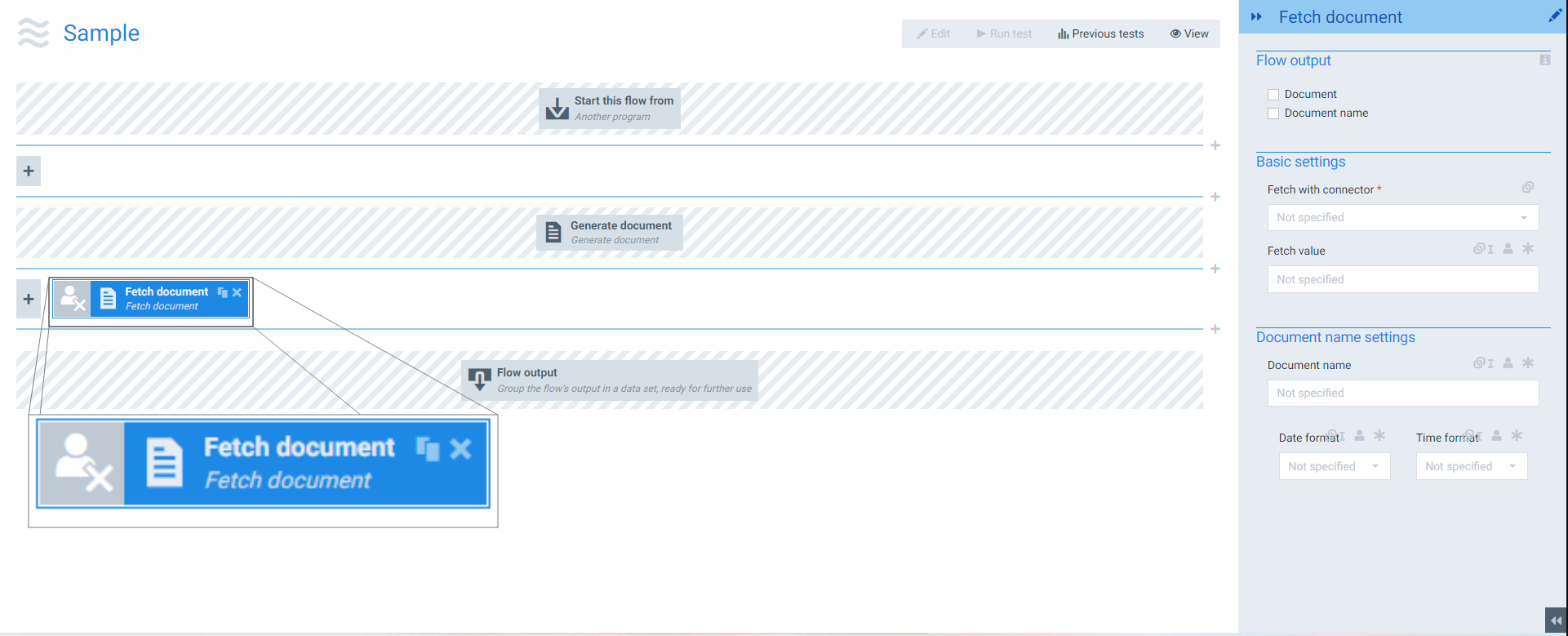

Fetch Document

The Fetch document flow block retrieves documents for use in your flow. The Fetch document flow block allows Designers to fetch documents from several connectors to use in concert with their generated document.

Example: In some scenarios, you want to include an external document in a flow in addition to the generated documents. For example, you may want to

  • Generate a quote for a customer and include a standard NDA from your company

  • Generate a lease for a tenant and fetch a lead paint notice to meet regulatory requirements

  • Generate a receipt and include a customer satisfaction survey

Parameters

The dropdown menus below provide all of the flow block's configuration options with detailed information and recommendations to help you configure your flow block.

You can further customize your flow block's parameters in several ways

  • Users can use linked fields to map data from your data set(s)

  • Users can use edit fields to customize the flow block

  • Using delayed output settings to wait for signatures or file names of completed documents

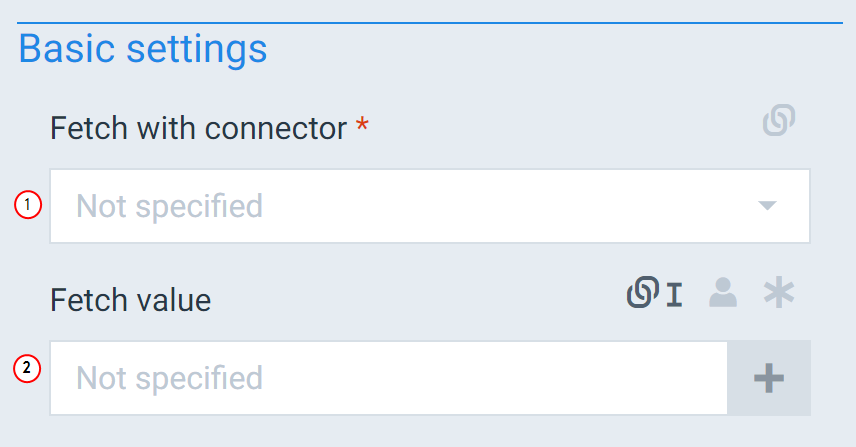

Fetch Document Basic settings functions

Index No.

Field name

Description

1

Fetch with connector

Defines the connector to use as the source for fetching the document. The system supports the following types of connectors: ClosedSugarCRM, Dynamics, SharePoint, Xpertdoc Portal, Http(s), File system, Docusign

2

Fetch value

Defines the data the system uses to generate the document. This field always links to a Retrieve data from Experlogix Smart Form , Retrieve data , or Get user input . The value Designers use for this field depends on the connector selected in the Fetch with connector field. Select here to see the configuration for different connectors:

Process a Smart Forms Upload using Fetch Document

To convert the output of a FilePicker field to a document that can serve as an input of another Flow Block, you must insert a Fetch Document block in your flow. This step will covert the content of the FilePicker field (a base64 string) into a Smart Flows document. Subsequent flow blocks, such as those listed below, can then utilize this document:

  • Store in Microsoft SharePoint

  • Send to e-signature provider

  • Save in CRM/ERP system

  • Send e-mail (body or attachment)

  • Convert document

In the image below, you can see the E-mail (smtp) block is linked to the output of the Fetch document block.

Fetch Value Configuration

Select here to display the Fetch value config guide table.

Connector type

Fetch value

Example
SugarCRM Use the following syntax:
Copy
SugarCRM fetch value syntax
xtsg://entity/id/filefield
 xtsg://Notes/b42ac242-ca6b-11e9-8873-023123a8c872/filename
Dynamics

Use the following syntax:

Copy
Dyanmics fetch value syntax
xtdc://entity/id/fileAttribute
 xtdc://annotations/b42ac242-ca6b-11e9-8873-023123a8c872/documentbody_binary
SharePoint Enter a relative path for the document to retrieve
Portal

Use the following syntax:

Copy

Portal fetch value syntax

<contentLibrary>/<folder>/<filename>
 MyLibrary/MyFolder/MyFile.pdf
Http(s) Add a relative path to the URL configured in your HTTP connector or an absolute URL
Filesystem Enter a valid path towards your document. The system only supports this connector type for on-premise installation.
Docusign Enter a relative path for the document to retreive

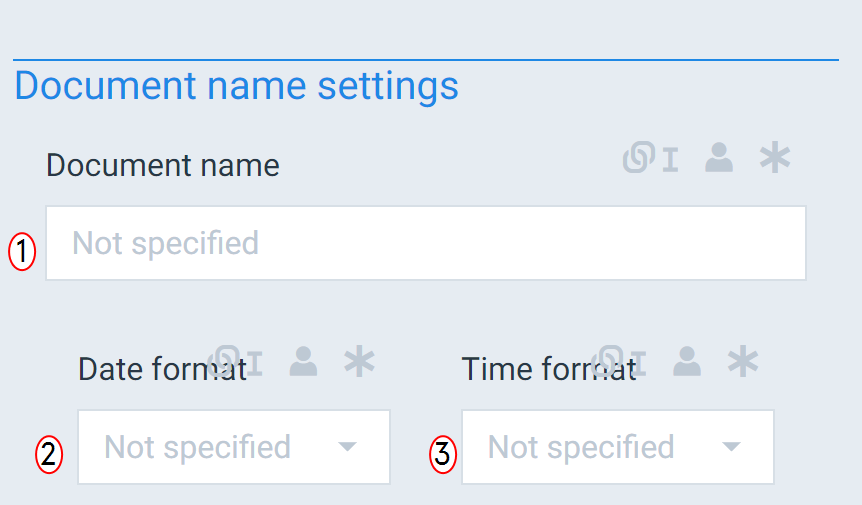

Fetch Document flow output settings functions

Index No.

Field name

Description

1

Document name settings

Overrides the name of the fetched document. If the field is empty, the fetched document keeps the existing filename.

2

Date Format

Sets the date formatting behavior. However, users can also link other fields to the Date format field. When using the linked field method, both the date and time fields can accept all date and time symbols; refer to Date & time patterns for more information.

3

Time Format

Sets the Time format behavior for the fetched document. When checked, the system adds a timestamp to the document's name as date_time. However, users can also link other fields to the Timestamp format field. When using the linked field method, both the date and time fields can accept all date and time symbols; refer to Date & time patterns for more information.
