Creating a OneSpan Sign Connector

The connector creation wizard guides you through the configuration when setting up a OneSpan Sign connector. You can have multiple OneSpan Sign-type connectors.

You must have access to a OneSpan Sign account to complete the connector creation in Smart Flows.

1. In the Project Console's Control panel, click the Connectors button.

The Connectors List view displays.

Project Console’s Control Panel showing the Connectors button highlighted

2. Click the +Create button.

The Create connector wizard displays.

Project Console’s Control Panel showing a list of connectors with a "+Create" button to add a new connector.

3. In the Name field, input the name of your connector.
4. (Optional) In the Description field, input a description for your connector.
5. In the Type dropdown menu, select OneSpan.
6. Select the Next button.

The Stage window displays.

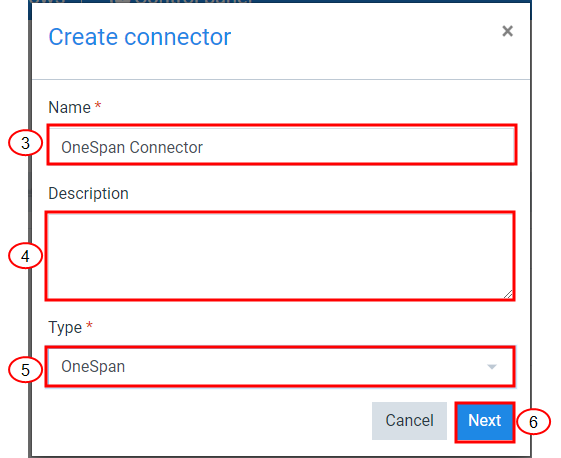

Create connector window - OneSpan

Standard OneSpan Sign URLs

Validate the URL with your OneSpan account manager to ensure you target the right environment.

7. In the Server URL, input the URL for your OneSpan Sign environment.
8. Select the Next button.

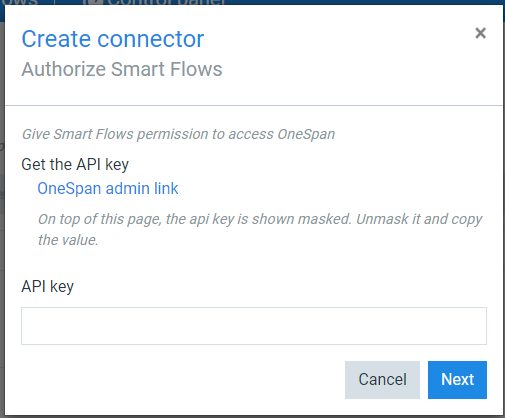

The Create connector Authorize Smart Flows window displays.

Create connector stage- OneSpan Sign

9. Select the Onespan admin link.

Your OneSpan Sign environment displays in a new page or tab.

10. Login to OneSpan Sign with your credentials.

The OneSpan Sign API Access page displays.

By default, your API key is masked as an asterisk when you load the page in OneSpan Sign. You must unmask the API so you can copy it into Smart Flows.

11. Select the unmask button to expose your API Key.
12. Select and copy your API key.

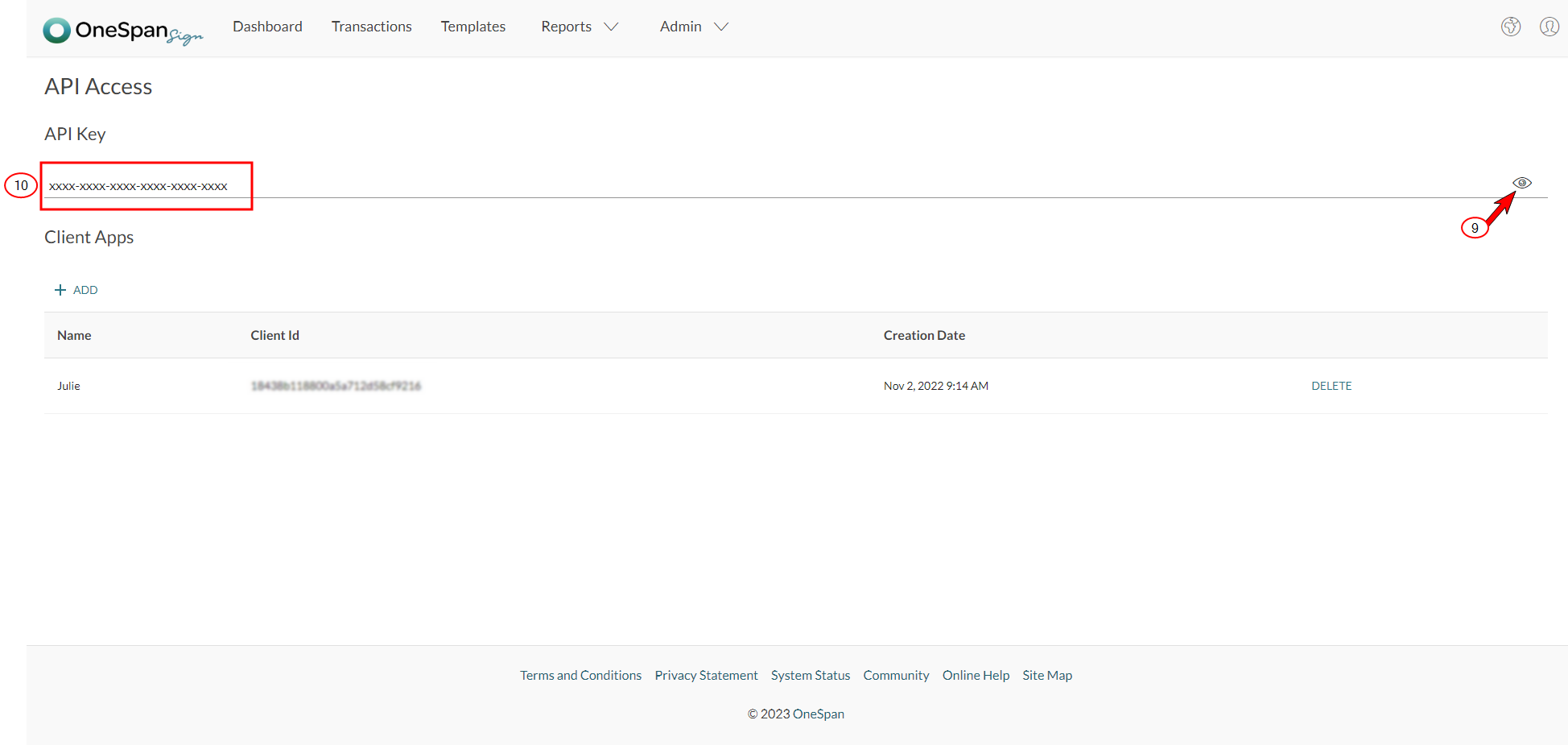

OneSpan Sign API Access page

13. In Smart Flows, in the API key field, paste your OneSpan Sign API key.
14. Select the Next button.

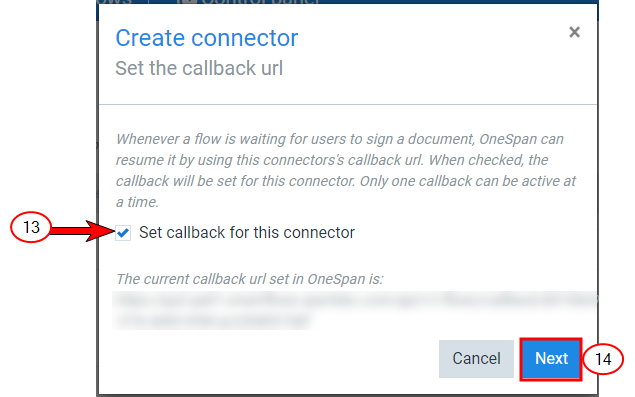

The Create connector Set the callback url window displays.

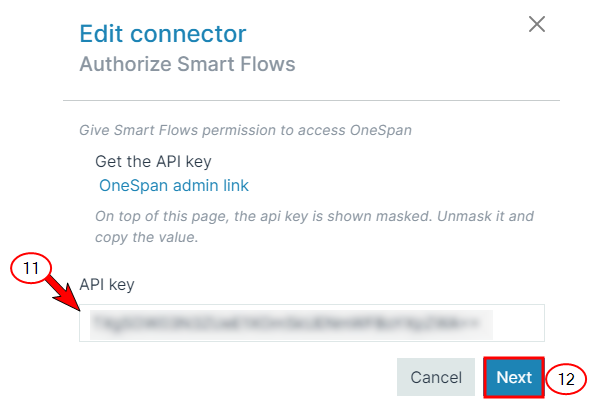

Adding OneSpan Sign API key



15. (Optional) To give Smart Flows the ability to be notified when a document is signed, select the checkbox for Set callback for this connector.

The system automatically configures the callback properly on the OneSpan Sign side.

16. Select the Next button.

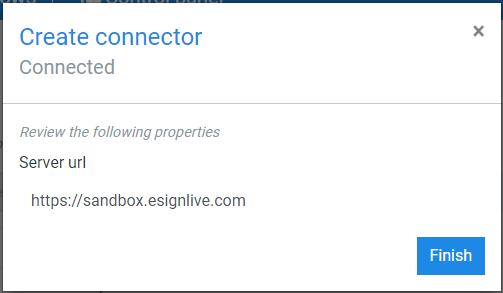

The Edit connector Connected window displays.

17. Select the Finish button.

Create OneSpan Sign Finish

The Configuration page for your new OneSpan Sign connector displays.

You've successfully created a OneSpan Sign connector for Smart Flows.
